While looking thru my hard drive, I came upon this 3D sketch I’d created a couple of years ago but never built. I decided to rectify that.
The plane will be built mainly from 1/4″ blue fanfold foam. The bottom of the fuselage is a double thickness of foam for strength.

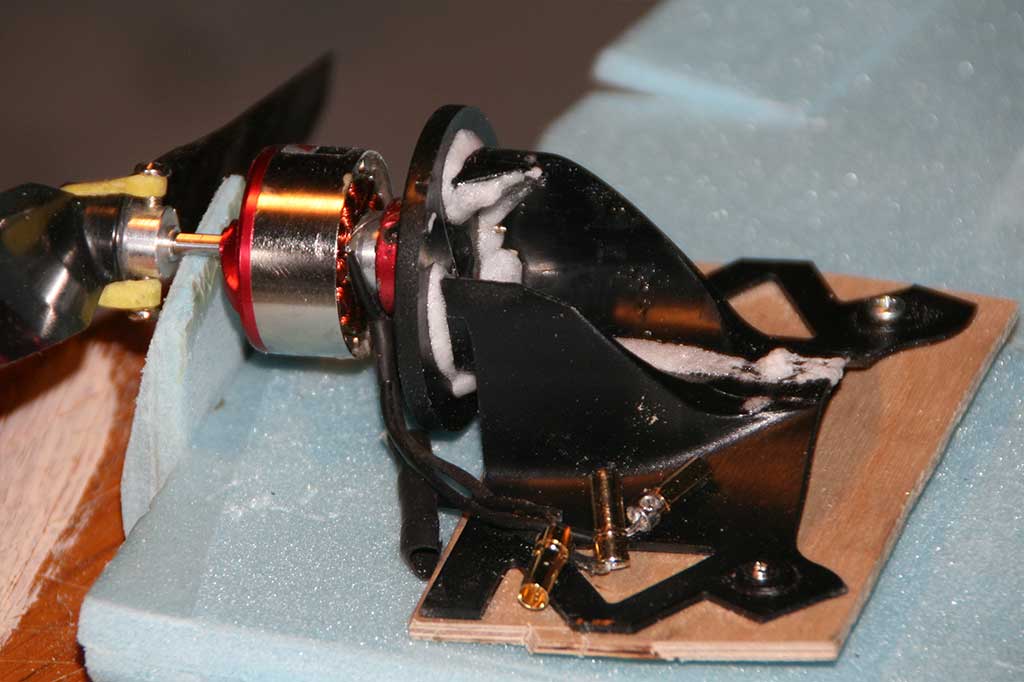

- Emax CF2822 outrunner
- 30A HobbyKing BlueSeries ESC
- EP 9050 propeller
- R610 OrangeRX receiver
- (3x) 9g Servo
- 800-1300 mAh 3S LiPo battery
I’m not sure how best to set up the canards. For my first try, I’m running a bamboo skewer through a section of disposable ball point pen tube. Each canard is constructed of two plies of foam, glued together with the skewer in between them. The resulting sandwiches are sanded into an airfoil shape.
I hate to do things over. (Ironically, I screwed up this post and am now having to re-type the whole thing.)
I’ve ripped my canard mount out and started over. The original was a little too loose over the bamboo skewer, allowing the skewer to jiggle around. I had the brilliant idea of wrapping a piece of tape around the skewer to increase its diameter. Unfortunately, either the sticky got loose or the tape bunched up or something, but the canards became really stiff and gummy feeling. There was no way to fix it, so I’ve ripped it out and started over.

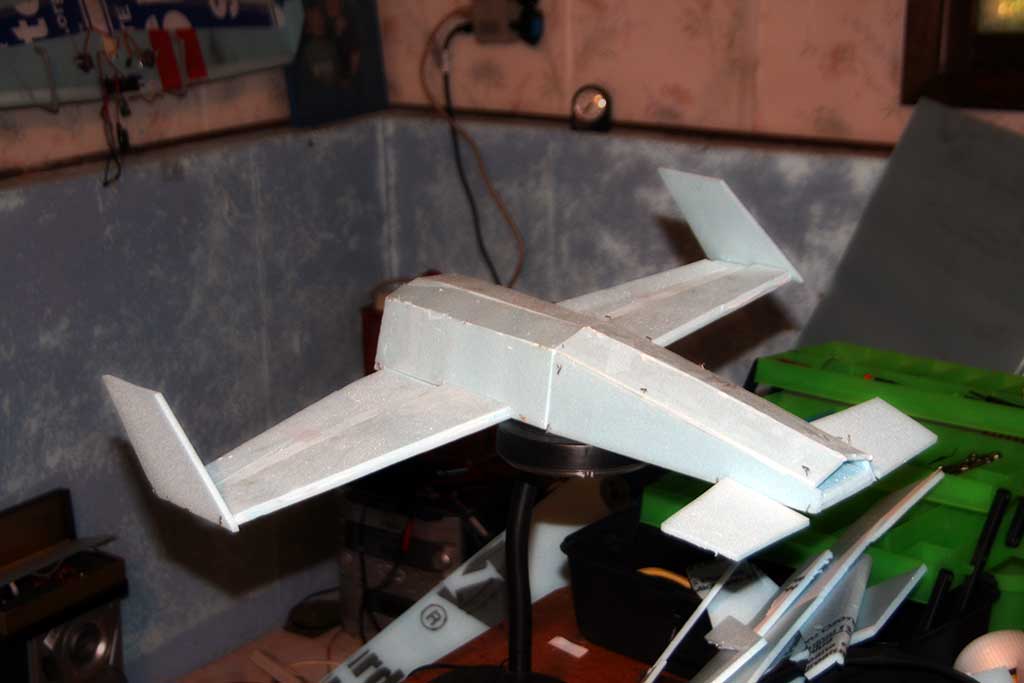

I took another length of ball point pen tube (my last!) and found two extra servo arms in my collection of 1,349 leftover servo arms whose hub fits within it. Hard to describe, but the photos should help.

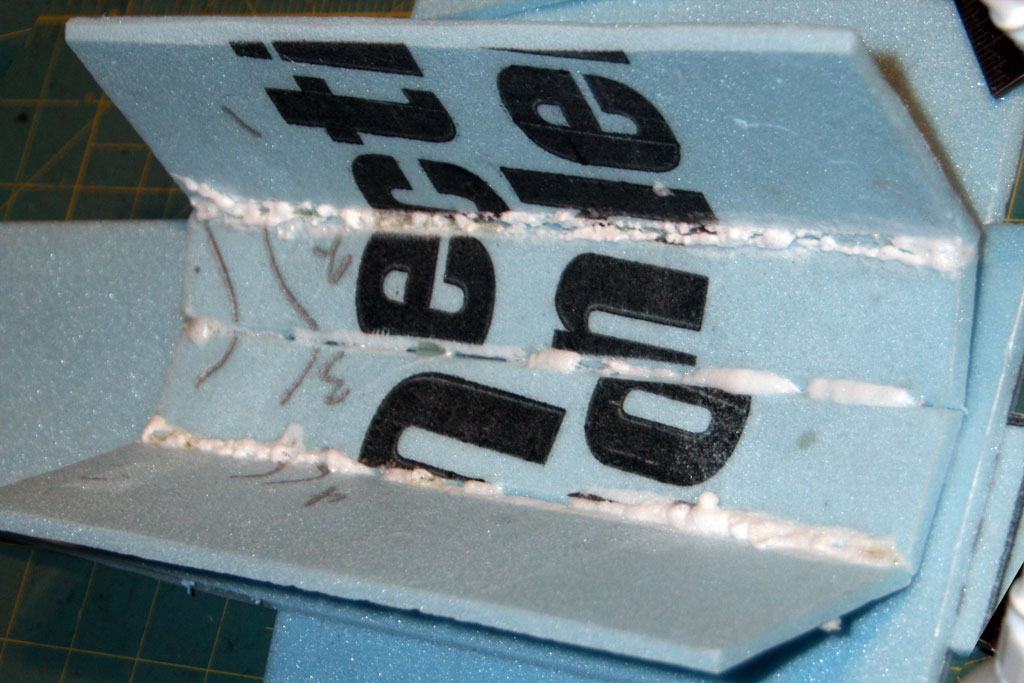

Unsure how to continue, I finally glued the entire body together, and then cut the battery hatch out of it. It’s held in place my some sections of Popsicle sticks in the front, and rare earth magnets in the rear.
